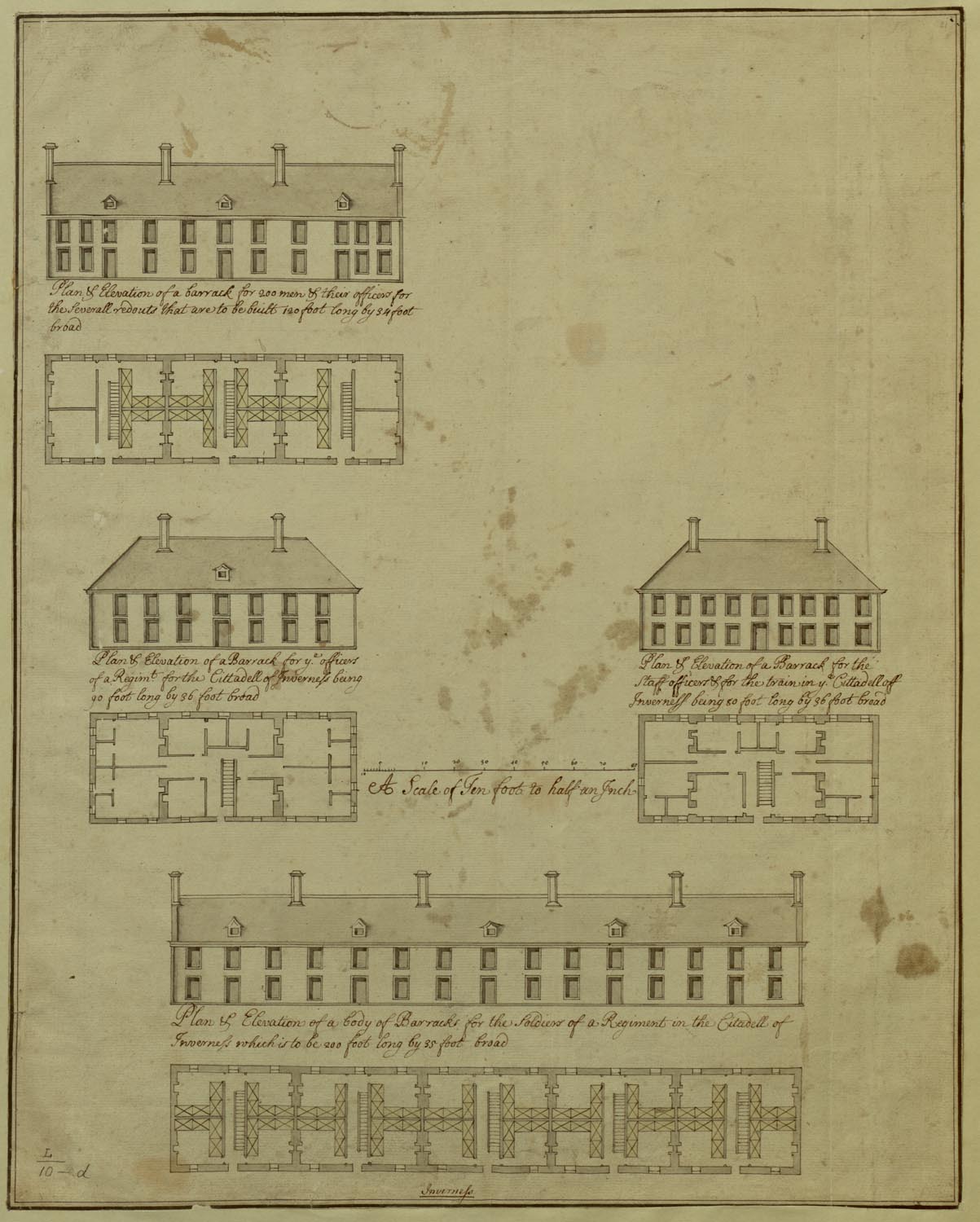

Plan & Elevation of a barrack for 200 men & their officers for the severall redoubts that are to be built 120 feet long by 34 foot broad : Plan & Elevation of a Barrack for ye officers of a Regiment for the Cittadell of Inverness being 90 foot long by 36 foot broad ; Plan & Elevation of a Barracks for the staff officers for the train in ye Cittadell off Inverness being 80 foot long by 36 foot broad ; Plan & Elevation of a body of Barracks for the soldiers of a Regiment in the Citadell of Inverness which is to be 200 foot lond by 35 foot broad.
Publication details
[around 1720]
Physical details
1 drawing : pen with black and red ink with monochrome wash ; sheet 51.1 x 40.6 cm
Description
A series of plans and elevations for buildings at Inverness Citadel. Inscribed with titles across sheet. Drawn on a scale of 10 feet to half an inch. Bears watermark Ornamented Fleur de Lys / 4 / LVG.
Place
Inverness (Scotland)
Shelfmark
Maps K.Top.50.10.d.
