PLAN and SECTION of the POWDER MAGAZINES under the BASTIONS : Plan and SECTION of One of the STOREHOUSES near the Gate Marked EE in the GENERAL PLAN ; PLAN SECTION and ELEVATION of the GOVERNORS and LIEVTnt GOVERNs HOUSES Marked AA in the GENERAL PLAN / Received with Mr Skinner's Report & Letter dat from Inverness 30 and 31 May 1747.
Creator
Skinner, William, 1700-1780, artist, architect.
Publication details
30 and 31 May 1747.
Physical details
1 drawing : pen and black ink with watercolour ; sheet 52.8 x 73.7 cm
Description

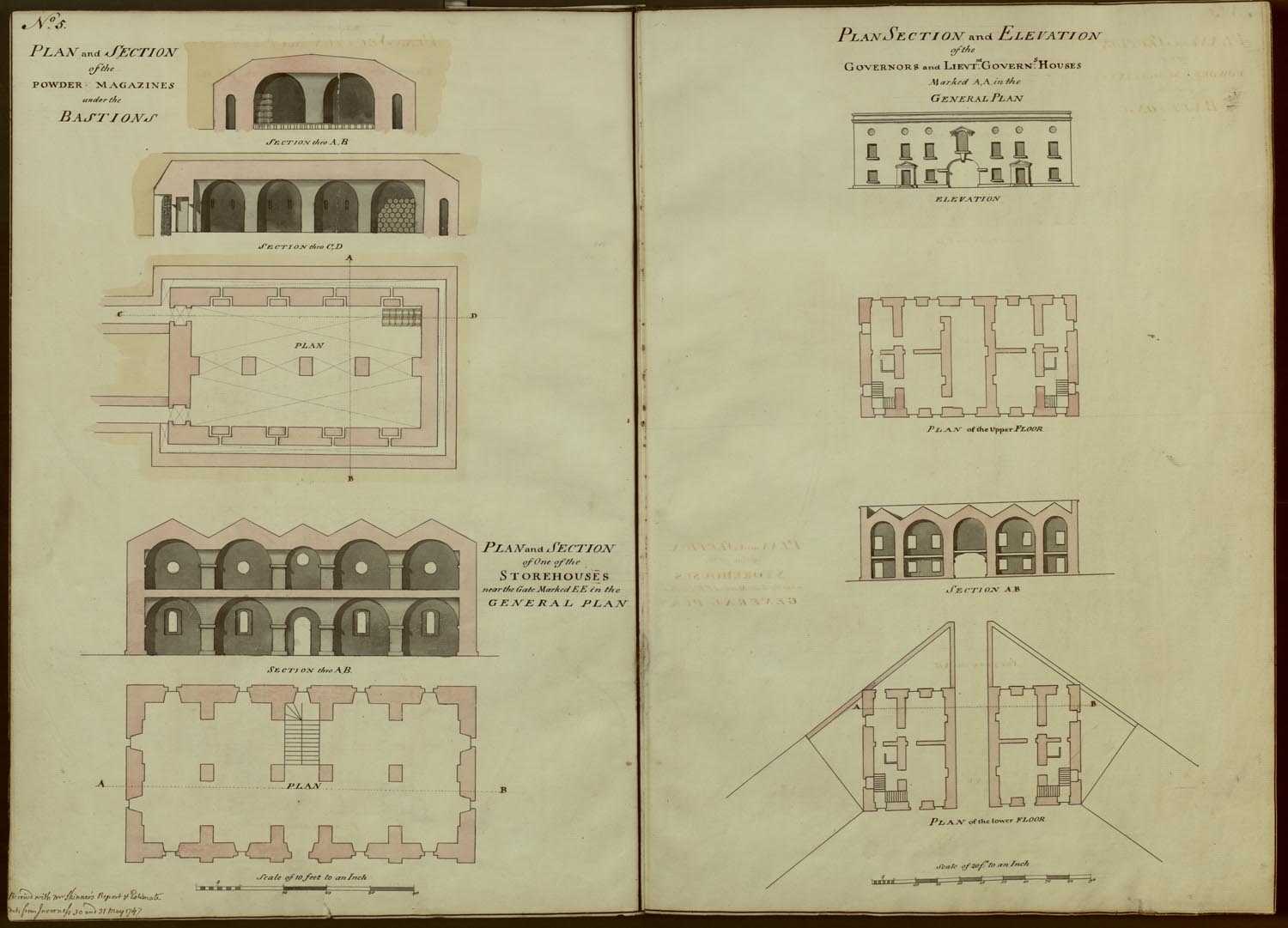

Plans, sections and elevations of the powder magazines, a storehouse and the governor and Lieutenant governor's houses at the proposed Oliver's Fort. Inscribed with titles across the sheet. Inscribed 'No5 in the upper left-hand corner. Drawn on a scale of 10 and 20 feet to an inch. Bears watermark IHS / I VILLEDARY = Ornamented Fleur de Lys / 4 / LVG.
Place
Inverness (Scotland)
Additional information
This drawing is one of eight plans and elevations together with a manuscript estimate and proposal at Maps K.Top.50.9.a.-i. for a fort at Inverness to replace Oliver's Fort which had been damaged in 1745.
